      home > product > RFID key tag > FR4 key tag

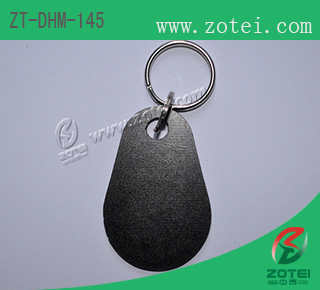

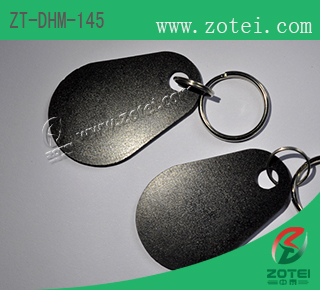

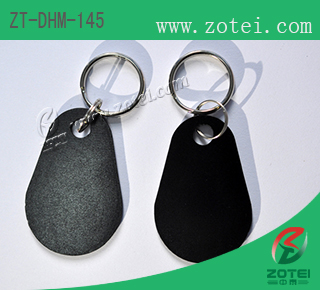

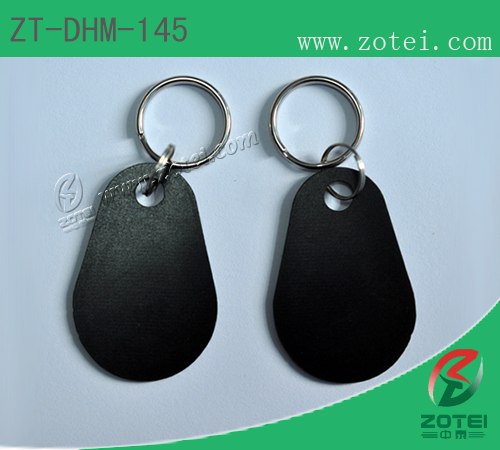

  FR4 key tag (Product model: ZT-DHM-145)



Product Type: ZT-DHM-102 ( UHF Anti-metal RFID tag )

Product type
ZT-DHM-145
Material
FR-4 (Glass fiber steel )
Size

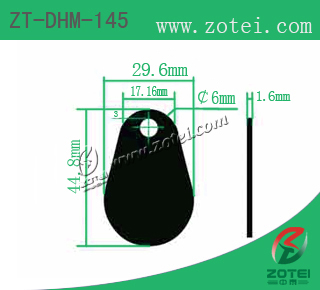

44.8* 29.6* 1.6 mm(Thickness Can customized)
Weight
3g
Color Black, white
Standard protocol
ISO 7815
Chip Model
TK4100(Can be packaged LF/HF Chip)
Frequency
125KHz
Read Distance
8 cm
Operating temperature -30℃ to +140℃
storage temperature -40℃ to +150℃
Effective life
≥10 years
Ingress Protection
IP65
Process methods
Laminated package
Feature
This tag for high temperature rugged environments containing a RFID module and antenna.
1. heat-resistant, anti-seismic, anti-corrosion.
2. the product can still maintain its excellent electrical performance at high temperature and humidity conditions , and wear the physical characteristics of long-term work in harsh environments, can be used repeatedly.
3. It have variety of sizes dispense with open the mold, can be formulate specifications shape when order. Useing the computer machine sculpture and cutting into products.
4. the black can laser coding, white can be inject.
5. Laminated and into this product general use 7-8 film material,thickness is adjustable, production according to the needs, conventional range 1.50mm-1.75mm.
Application
Data carriers, enabling goods to be accurate tracking, can play a logo to identify items to track the role of information collection.


FR4 key tag ( Product Type: ZT-DHM-145 )   FR4 key tag ( Product Type: ZT-DHM-145 )

FR4 key tag ( Product Type: ZT-DHM-145 )   FR4 key tag ( Product Type: ZT-DHM-145 )
