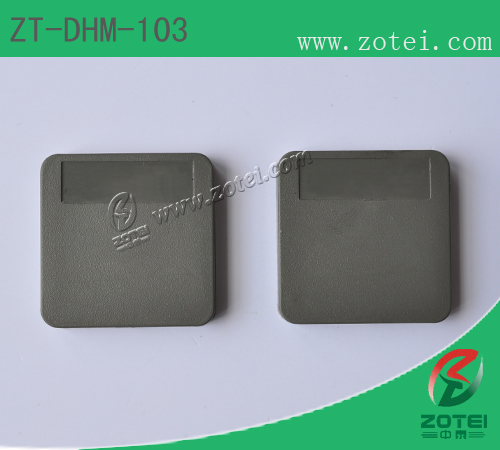

Product model: ZT-DHM-103 (UHF Ceramic RFID metal tag) |
| |
|
| |
|
| |
|
Product type |
ZT-DHM-103 |
Product Category |
Ceramic RFID metal tag |
Introduction |
The electronic tags are UHF band passive RFID tags, using microwave ceramic dielectric substrate, the antenna is designed to 915MHz, the shell is made of PC engineering high temperature plastic, with small size, light weight, thermostability, fatigue resistance, easy installation, stable performance and suitable for installation in metal media objects. For example, safes, computers, doors, windows, mold, vehicles, weapons ...... and so on , the objects which installation of the electronic tags will become the digital products can be used for information tracking, logistics, patrol, anti-theft ... etc. |
Material |
Antenna substrate: high-frequency Ceramic; shell: PC plastic |
Size |
29* 29* 5.3 mm |
Weight |
15g |
Standard protocol |
ISO18000-6C(EPC Global Class1 Gen2) |
Chip Model |
Can be packing : NXP ucode HSL, ucode G2, Alien Higgs-3 |
Frequency |
915MHz, For customers specially designed 868MHz (paid) |
|
Redford RFS2212, Times Fest RFD1900 |
Read Distance |
≥ 2M (use 9dbi Antenna) |
UID |
8 Byte |
Storage structure |
64 block; 4 bytes / block |
| Memory |
2048 Bit |
| Operating temperature |
-40℃ to +80℃ |
Effective life |
≥10 years |
Effective frequency of use |
≥ 100,000 times |
Other Information |
> Color: Conventional gray MOQ = 5K, Can select other colors;
> LOGO: Conventional neutral, or of Mango also be paid to changes in mold, using client LOGO (pay 2000 RMB);
> Printing: monochrome / color screen printing;
> Coding: Provide only spray water code; |
| Installation method |

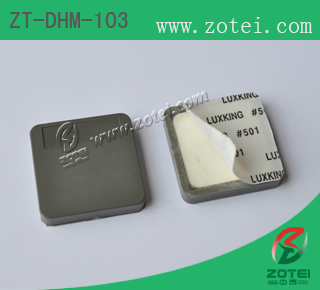

The tag is with double-sided adhesive, it can be pasted directly to the metal surface. |
Application |
high temperature resistance, stable performance, easy installation, suitable for metal media object installation. |
|
| |
| |
|
| |
|
