| home > product > RFID tag > PCB RFID metal tag > ZT-JCR-P8001 |
 |
| |
| |

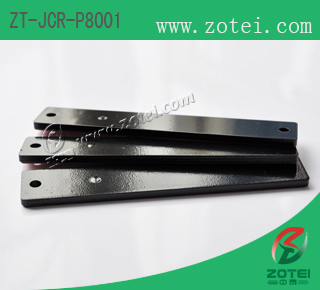

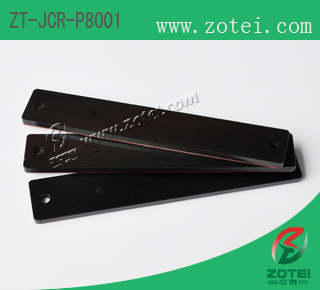

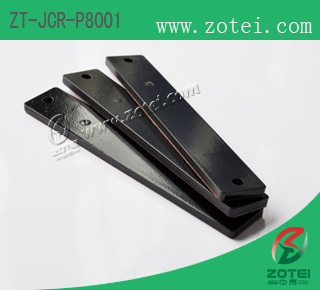

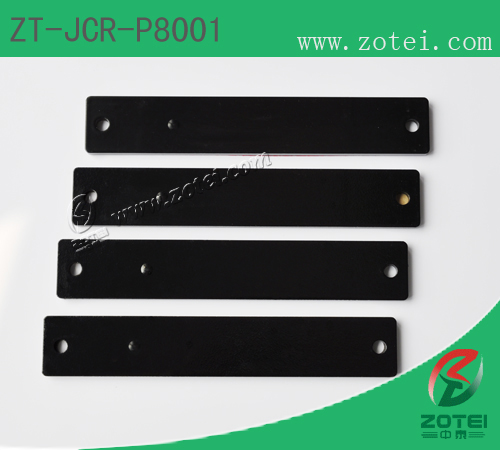

Product model: ZT-JCR-P8001 |
| |
|
| |
|
|
Product type |
ZT-JCR-P8001 |
Product Category |
PCB RFID metal tag |
Material |
PCB (FR4) |
Size |
130* 22* 4 mm |
Weight |
30g |
Standard protocol |
ISO18000-6C(EPC Global Class1 Gen2) |
Chip Model |
NXP UCODE G2XM (Optional) |
Operating frequency |
860MHz ~ 960MHz |
Working mode |
Read/Write |
| Memory |
EPC Size 96 bits, extensible to 480 Bits |
Read Distance |
> 6 M |
Effective life |
≥ 10 years |
Effective frequency of use |
≥ 100,000 times |
| Operating temperature |
-40℃ to +80℃ |
| Installation method |
The tag can be attached using screws and rivets, or paste the tag directly to the metal surface（the tag with double-sided adhesive) |
Application |
Assets Management, Pallet Management, etc. |
|
| |
| |
|
| |
| |
| |
|
