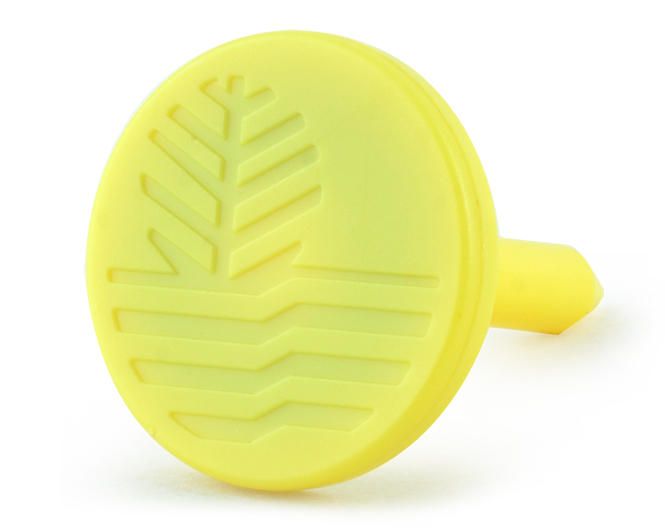

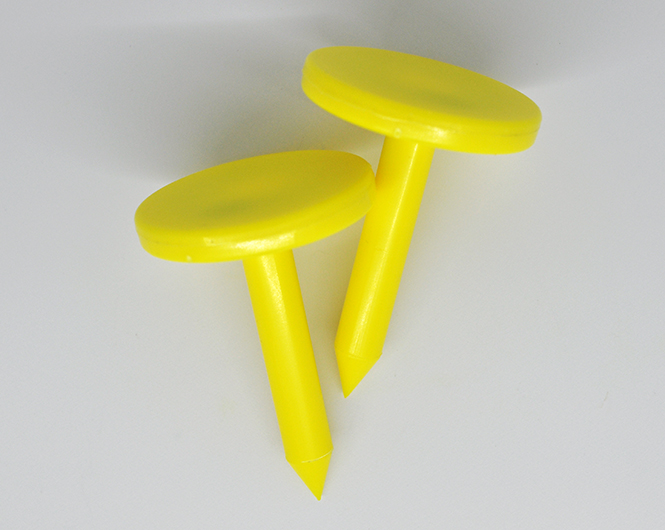

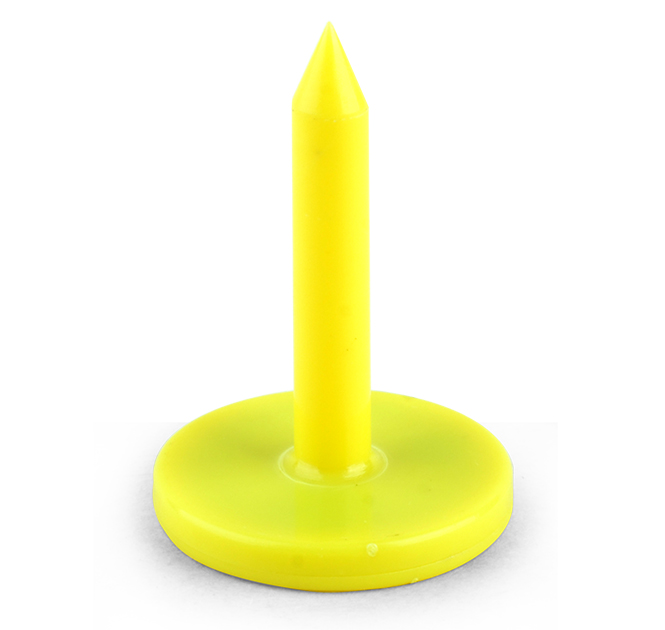

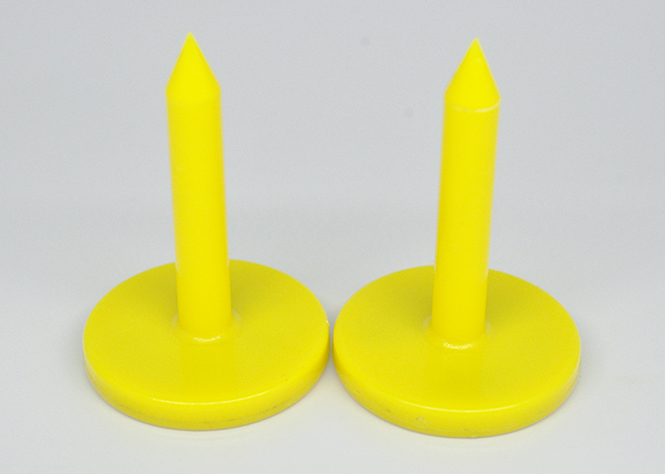

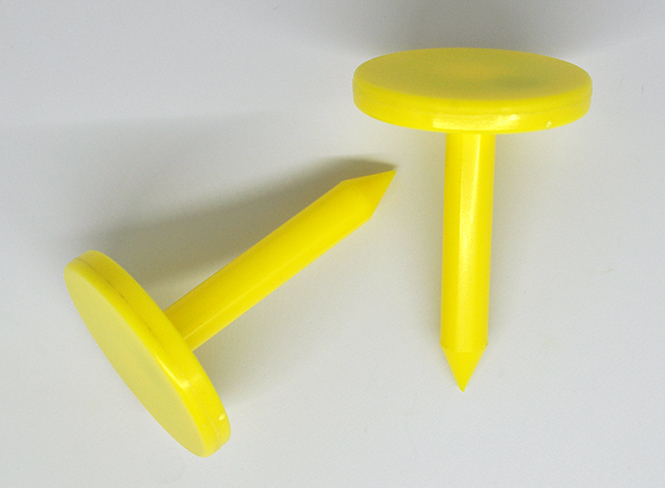

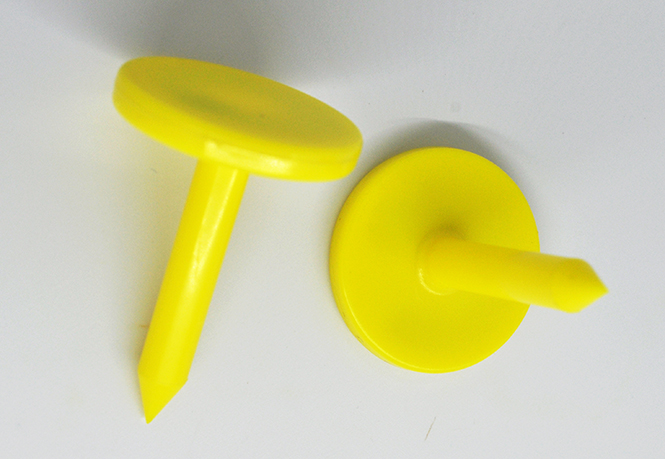

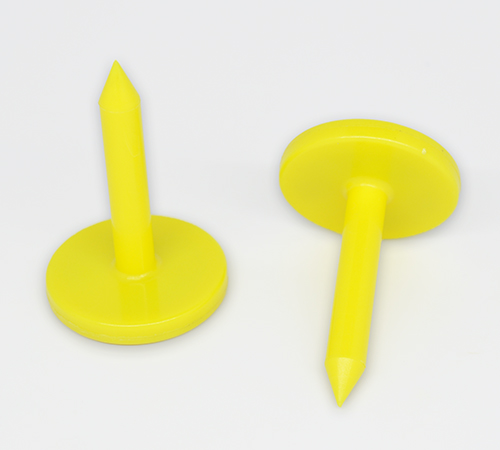

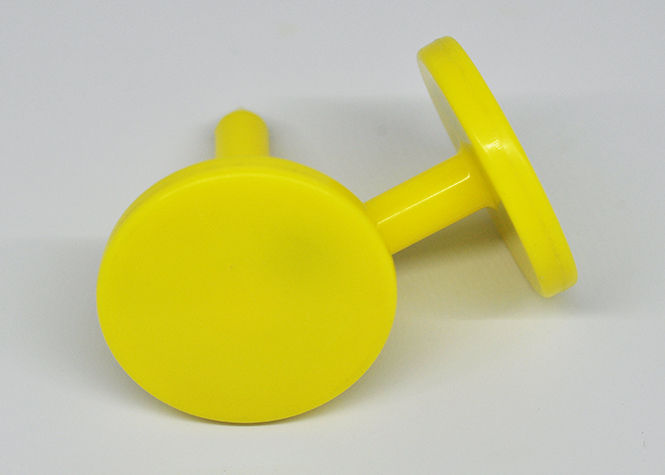

RFID Nail tag (Product model: ZT-MY-161029-04) |
| |
|
| |
|
| |
|
Product type |
ZT-MY-161029-04 |
Product description |
The installing method is putting the nail tag in the goods after drilling a hole in the goods surface. The diameter of the hole is suggested to be smaller than 26*33mm, and should be knocked in by rubber hammer. It can be used in the non-metallic products like cement, prefabricated product, plastics and wood. |
Material |
ABS |
color |
yellow |
Size |
Φ28*41*Φ6mm |
Weight |
|
Date Storage Time |
10 years |
Standard protocol |
ISO14443A; ISO15693 |
Chip Model |
packing low-frequency chip(125KHz):
TK4100, EM4200, T5577, Hitag 1, Hitag 2, Hitag S etc.
packing high-frequency chip(13.56MHz):
FM11RF08, MIFARE Classic® 1K, MIFARE Classic® 4K, Ultralight, NTAG203, I-CODE2, TI2048, SRI512 etc. |
Frequency |
125KHz; 13.56MHz |
Operating Temperature |
-40℃ ~ +85℃ |
Read Distance |
1 ~ 5cm |
Application |
Timber and wooden products tracking management; Pallet tracking; Tree identification |
|
| |
| |
|
