| Product type |
ZT-YK-002 |
| Introduction |

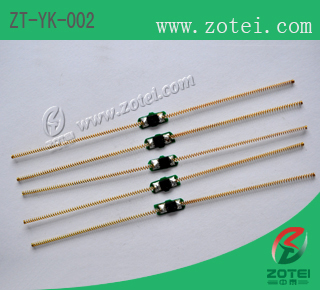

This UHF RFID Tire tag is intended for embedding into the tire mould prior to the manufacture and curing of the tire. The tag protocol is ISO 18000-6C or EPC class 1 Gen 2 with 192 bits user memory. It survives high temperatures encountered in the tire curing process and is sturdy enough to remain operational throughout the life of the tire. It offers a read distance of up to 1m or 3 feet when embedded into the tire and provides a flexible construction to withstand tire deformation. The tag can be built into truck tires that can be recapped several times. |
| Size |
90mm length, 1 mm diameter (wire), 4 mm width (chip) |
| weight |
0.2g |
| Material |
Metal |
| Standard protocol |
ISO 18000-6C(EPC class 1 Gen 2) |
| Chip |
Alien H3 |
| Frequency Range |
860MHz~960 MHz (optimised for 916 MHz) |
| EEPROM Size |
192 bits |
| Memory Resolution |
Single byte addressing and locking |
| Memory Organization |
96 bit programmable EPC number with lock possibility |
| 192 bit user memory with lock possibility |
| Read Distance |
5~6 M |
| Write Range |
70% of read range |
| Polarization |
Linear |
| Mounting |
Embedded in the mould of the tire during manufacturing |
| Key Features |
> 860 to 960 MHz frequency range for worldwide application;
> Positively tested under the most difficult conditions in Nascar racing cars;
> Ability to read and write user data into tag's internal memory;
> Factory pre-programmed tag identification number is unique to prevent cloning. |
