| home > product > UHF RFID reader | writer > channel reader / writer > ZT-RY-401 |
 |
| |
|
| |

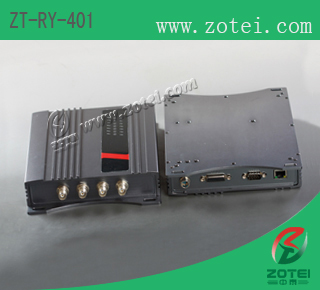

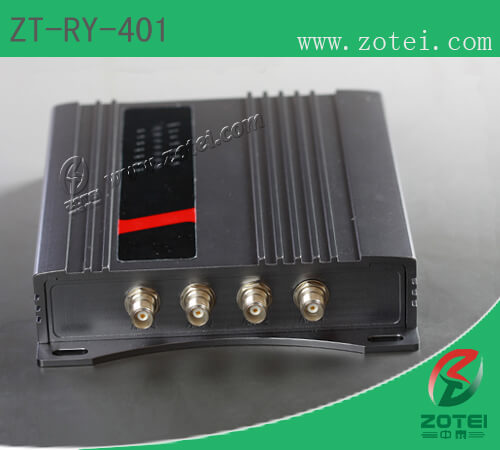

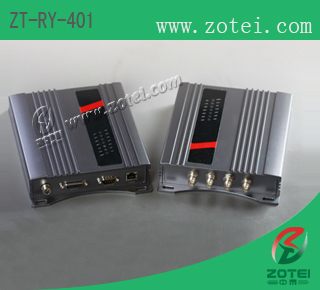

Split Multichannel UHF RFID Reader / writer (Product model: ZT-RY-401) |
| |
|
| |
|
| |
|
| |
|
| |
 |
| |
|
| |
 |
| |
|
| |
ZT-RY-401 is a high performance UHF RFID fixed reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
Standard Product:
ZK - RFID401, (RS232, RS485, RJ45), one of the power cord, a dedicated power supply,a piece of DB9 serial cable.
FEATURES
> Self-intellectual property;
> Support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag;
> 902~928MHz frequency band(frequency customization optional);
> FHSS or Fix Frequency transmission;
> RF output power up to 30dbm(adjustable);
> 4 TNC antenna port;
> Support auto-running, interactive and scanning work mode;
> Low power dissipation with single +9 DC power supply;
> Support RS232, RS485, TCPIP with other interface optional;
> Built-in LED, Buzzer, GPIO and Relay;
> High reliability design.
> Size: H230mm × W170mm × T40mm, weight: 2.5kg.

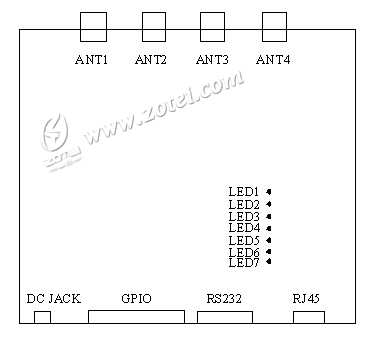

INTERFACE
1. Power (DC JACK)
| No. |
Symbol |
Comment |
| Central |
PWR |
+9VDC |
| Outer |
GND |
Ground |
2. GPIO (DB15 Female)
| Pin |
Symbol |
Comment |
| 1 |
Output1 |
General Output1 |
| 2 |
Output2 |
General Output2 |
| 3 |
Output3 |
General Output3 |
| 4 |
Output4 |
General Output4 |
| 5 |
Output5 |
General Output5 |
| 6 |
Output6 |
General Output6 |
| 7 |
Output7 |
General Output7 |
| 8 |
Output8 |
General Output8 |
| 9 |
TGIN |
Trigger input with internal pull-up to 5V through a 10k resistor |
| 10 |
R+ |
R+ of RS485 |
| 11 |
R- |
R- of RS485 |
| 12 |
GND |
Signal Ground |
| 13 |
NO |
Normal-Open terminal of internal relay |
| 14 |
NC |
Normal-Close terminal of internal relay |
| 15 |
CM |
Common terminal of internal relay |
3. Serial communication port RS232 (DB9 Male)
| No. |
Symbol |
Comment |
| 1 |
NC |
Reserved |
| 2 |
TXD |
General Output2 |
| 3 |
RXD |
General Output3 |
| 4 |
NC |
Reserved |
| 5 |
GND |
Ground |
| 6 |
NC |
Reserved |
| 7 |
NC |
Reserved |
| 8 |
NC |
Reserved |
| 9 |
NC |
Reserved |
4. TCPIP network (RJ45)
5. TNC antenna port ANT1~ANT4
6. LED indicator LED1~LED7
| No. |
Symbol |
Comment |
| 1 |
LED1 |
Antenna 1 active indicator |
| 2 |
LED2 |
Antenna 2 active indicator |
| 3 |
LED3 |
Antenna 3 active indicator |
| 4 |
LED4 |
Antenna 4 active indicator |
| 5 |
LED5 |
Tag-detected indicator |
| 6 |
LED6 |
Command-executing indicator |
| 7 |
LED7 |
Power-on indicator |
CHARACTERISTICS
> Absolute Maximum Rating
| ITEM |
SYMBOL |
VALUE |
UNIT |
| Power Supply |
VCC |
16 |
V |
| Operating Temp |
TOPR |
-10~+55 |
℃ |
| Storage Temp |
TSTR |
-20~+75 |
℃ |
> Electrical and Mechanical Specification
Under TA＝25℃，VCC＝+9V unless specified
| ITEM |
SYMBOL |
MIN |
TYP |
MAX |
UNIT |
| Power Supply |
VCC |
8 |
9 |
12 |
V |
| Current Dissipation |
IC |
|
600 |
1500 |
mA |
| Frequency |
FREQ |
902 |
|
928 |
MHz |
* Effective distance depends on protocol, tag and environment.
