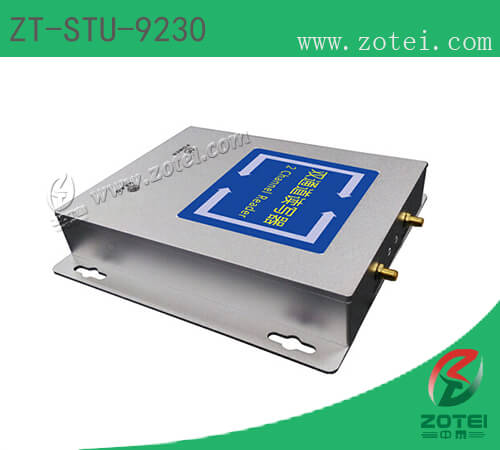

UHF RFID 32 CHANNEL RFID Reader / writer (Product model: ZT-STU-9230) |
| |
|
| |
|
| |
|
| |
|
| |
 |
| |
|
| |
 |
| |
|
| |
Product Introduction
ZT-STU-9230 is a two port EPC Class 1 Gen2 UHF RFID fixed reader. Design with aluminum housing, supports RS485,RS232 and Wiegand 26/34 communication interface. It has small size and easily installation.
Products Features
>Support ISO18000-6C EPC Class 1 Gen 2 protocol;
>Multiple tags reading, up to 200pcs tags;
>Built in INDY R2000 chip;
>High speed reading and high sensitivity;
>Provides RS232, RJ45, RS485, Wiegand 26\34\42;
>Provides DEMO, which helps customer to build their own system or demo;
SPECIFICATION
| Working Frequency |
902～928 MHz or 865~868MHz |
| Chip |
INDY R2000 |
| Radio frequency power |
0～30dBm(Can be adjusted by software) |
| SDK |
C#, VC, JAVA |
| Multiple tag reading |
0-200 tags |
| Software |
Provide demo software(Reading/writing tags automatically easy to write tag) |
| Protocol |
ISO18000-6C（EPC G2） |
| Connector |
2*SMA female(customized) |
| Storage space |
256 M large capacity Flash electricity save |
| Real-time clock |
without electricity, real-time clock save and working timely |
| Frequency modulation way |
Broad spectrum frequency hopping or fixed frequency |
| Input/output interface |
Two-way relay output, two-way I/O input |
| Label signal numerical |
RSSI numerical test |
| Output power |
0~30±1dBm |
| Size |
180*131*27mm |
| Net weight |
Around 500g |
| Working temperature |
-20℃~+75℃ |
| Storage temperature |
-40℃~+85℃ |
| Communication port |
RS232, RJ45, RS485, Wiegand 26\34\42 |
| Power supply |
DC 7.5v-12V,3A |
| Shell material |
Aluminum alloy |
|
|
| |
| |
| |
|
| |
|
| |
|
| |
|
|
