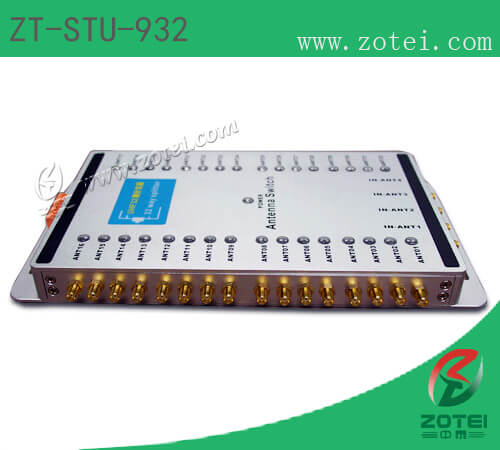

UHF 32 CHANNEL RFID Reader / writer (Product model: ZT-STU-932) |
| |
|
| |
|
| |
|
| |
|
| |
 |
| |
|
| |
 |
| |
|
| |
Product Introduction
ZT-STU-932 is our new generation of UHF RFID Reader. It applies FCC ISM (902-928MHz) protocol and ETSI (865.6-867.6MHz) (need to specify when the order is placed). This device is designed to read ISO18000-6C（EPC C1 GEN2）Tags. Light weighted, supreme performance, easy to use, widely applied, reliable, stable are what user will get when the device is first in their hands. ZT-STU-932 provides API function for further development. Meanwhile, it is integrated with LAN interface, management software and database. The process of building a success system can meet all the needs of storage management, logistic, VMI-HUB, industrial production management, identification, access management and so on.
Products Features
Fast reading, long reading range, multiple tags reading, only read tags specified by system, frequency jumping to avoid interference.
| Working Frequency |
902～928 MHz or 865~868MHz |
| Chip |
Impinj R2000 |
| SDK |
Provides SDK with programming samples(c#,vc,java etc.) |
| Software |
Provides a DEMO(Reading and writing tags automatically), which helps
customer to build their own system or demo. |
| Protocol |
ISO18000-6C(EPC G2) |
| Antenna |
Can connect to 32 SMA port antenna |
| Size |
275*180*30MM |
| Weight |
3.5kg |
| Working temperature |
-20℃~+70℃ |
| Storage temperature |
-30℃~+80℃ |
| Communication port |
RS232, TCP/IP(WIFI customized) |
| Power |
DC9V~12V, 3A |
| Reading range |
> 10m (work with 8.5dBm antenna) |
Applications
> Vehicle management：monitoring and managing autos and containers.
> Customs management：great speed up the customs’ process.
> Logistics management：parcels and whale house management.
> Access control：including car access and personal access.
> Production line management：monitoring products from end to end.
> Asset management：dramatically improved the security level.
|
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
