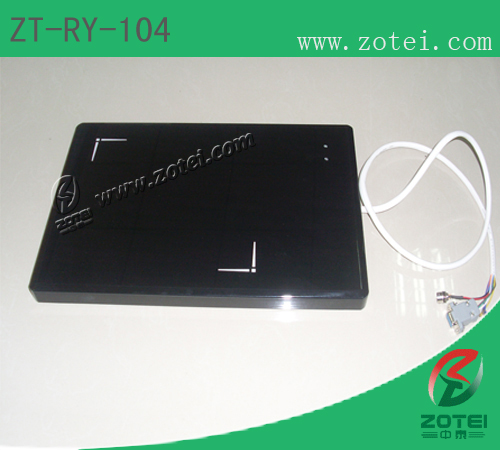

ZT-RY-104 is a high performance Multiple Protocol UHF RFID Reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system.

Standard Product:
ZT-RY- 104 (Wiegand / RS232 / RS485), Dedicated power supply machine.

FEATURES
 > Self-intellectual property ;
 > Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag ;
 > 902~928MHz or 865~868MHz frequency band(frequency customization optional);
 > FHSS or Fix Frequency transmission;
 > RF output power up to 30dbm(adjustable);
 > The built-in antenna, typical reading distance 1M;
 > Support auto-running, interactive and trigger-activating work mode;
 > Low power dissipation with single +9 DC power supply;
 > Support RS232, RS485, Wiegand interface;
 > Provide DLL and Demonstration Software Source code to facilitate further development;
 > Size: H330mm × W240mm × T18mm;
>  Weight: 2.2kg.

CHARACTERISTICS
 > Absolute Maximum Rating
