  RFID reader / writer (13.56MHz): ZT-SMT series




  Product Model:

Product
Type
Product Name
Specifications
Parameter
mode
Product Picture
ZT-SMT-R65C
IC card reader
interface: Micro-USB
protocol: ISO14443A
frequency: 13.56MHz
support chip:
S50/S70/FM11RF08/Ntag213/Ultralight
product size: 35*35*7mm
package size: 71*71*19mm
weight: 20G(NW)\50G(GW)
power supply: 5V
current: 100mA
environment:
operating temperature: -20℃-70℃
operating humidity: 5%-95%
response time: <100ms
color: black or white
operating system:android
reading distance:
0-30mm(read on the front/back);
0-10mm(read on the side)
display: two LED indicators
(red for mains, green for status)
R/O
RFID reader
ZT-SMT-W65A
IC card
reader & writer
interface: Micro-USB
protocol: ISO14443A
frequency: 13.56MHz
support chip: S50/S70/FM11RF08
R/W
ZT-SMT-R6593
IC card reader
interface: Micro-USB
protocol: ISO15693
frequency: 13.56MHz
support chip:
ICODE SLI/ICODE SLIX/ICODE SLI-S
R/O
ZT-SMT-R20XC
IC card reader
interface: USB
protocol: ISO14443A
frequency: 13.56MHz
support chip:
S50/S70/FM11RF08/Ntag213/Ultralight
operating system:
windows 98\ XP\2000\CE\7
\ME\NT\LIUNX.Android
reading distance: 0~80MM
response time: <100ms
response speed: 0.2S
response distance:0.5S
product size: 94*60*10mm
power fetching mode: USB ports
R/O

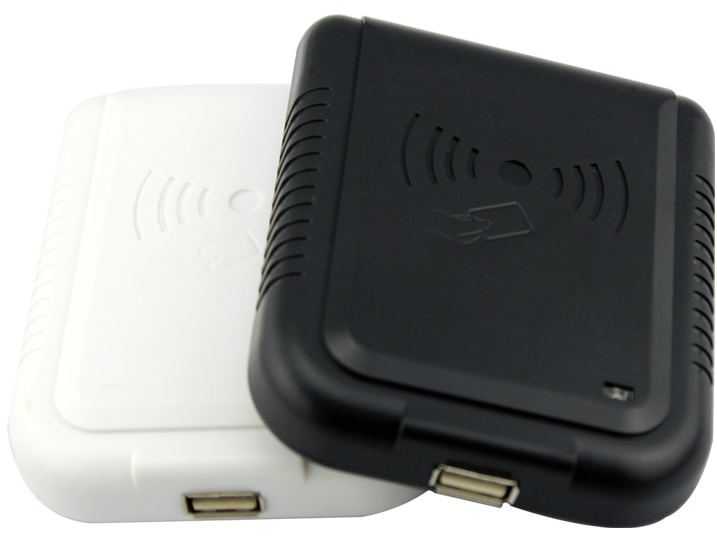

RFID reader
ZT-SMT-R10C
IC card reader
interface: USB
protocol: ISO14443A
frequency: 13.56MHz
support chip:
S50/S70/FM11RF08/Ntag213/Ultralight
operating system:
Windows98/XP32/XP64/2000/CE/7/ME
/NT/LIUNX/Vista32/Vista64/Android
reading distance: 0~80mm
response time: <100ms
response speed: 0.2S
response distance:0.5S
product size: 110*80*26mm
power fetching mode: USB ports
weight: 160G
environment:
operating temperature: -20℃-70℃
operating humidity: 5%-95%
power supply: 5V
current: 100mA
reading distance:
0-30mm(read on the front/back);
0-10mm(read on the side)
display:
two LED indicators
(red for mains, green for status)
Built in controllable LED and buzzer
R/O
RFID reader
ZT-SMT-R13C
IC card reader
interface: PS/2
protocol: ISO14443A
frequency: 13.56MHz
support chip:
S50/S70/FM11RF08/Ntag213/Ultralight
R/O
ZT-SMT-R11C
IC card reader
interface: RS-232
protocol: ISO14443A
frequency: 13.56MHz
support chip:
S50/S70/FM11RF08/Ntag213/Ultralight
R/O
ZT-SMT-R1093
IC card reader
interface: USB
protocol: ISO15693
frequency: 13.56MHz
support chip:
ICODE SLI/ICODE SLIX/ICODE SLI-S
R/O
ZT-SMT-R1193
IC card reader
interface: RS-232
protocol: ISO15693
frequency: 13.56MHz
support chip:
ICODE SLI/ICODE SLIX/ICODE SLI-S
R/O
ZT-SMT-W10A
IC card
reader & writer
interface: USB
protocol: ISO14443A
frequency: 13.56MHz
support chip: S50/S70/FM11RF08
R/W
ZT-SMT-W1093
IC card
reader & writer
interface: USB
protocol: ISO14443A
frequency: 13.56MHz
support chip: S50/S70/FM11RF08
R/W
ZT-SMT-W10Q
IC card
reader & writer
interface: USB
protocol: ISO14443A+ISO15693
frequency: 13.56MHz
support chip:
S50/S70/FM11RF08/Ultralight
/ICODE SLI/ICODE SLIX/ICODE SLI-S
R/W
ZT-SMT-W11A
IC card
reader & writer
interface: RS-232
protocol: ISO14443A
frequency: 13.56MHz
support chip: S50/S70/FM11RF08
R/W
ZT-SMT-W1193
IC card
reader & writer
interface: RS-232
protocol: ISO15693
frequency: 13.56MHz
support chip:
ICODE SLI/ICODE SLIX/ICODE SLI-S
R/W
ZT-SMT-W11Q
IC card
reader & writer
interface: RS-232
protocol: ISO14443A+ISO15693
frequency: 13.56MHz
support chip:
S50/S70/FM11RF08/Ultralight
/ICODE SLI/ICODE SLIX/ICODE SLI-S
R/W
ZT-SMT-W10S
IC card sector
reader & writer
interface: USB
protocol: ISO14443A
frequency: 13.56MHz
support chip: S50/S70/FM11RF08
IC sector reader & writer
R/W
ZT-SMT-R20C
IC card reader
interface: USB
protocol: ISO14443A
frequency: 13.56MHz
support chip:
S50/S70/FM11RF08/Ntag213/Ultralight
operating system:
Windows 98/XP/2000/CE/7
/ME/NT/LIUNX/Android
reading distance: 0~80mm
response time: <100ms
response speed: 0.2S
response distance:0.5S
product size: 104*68*10mm
power fetching mode: USB ports
weight: 140G
environment:
operating temperature: -20℃-70℃
operating humidity: 5%-95%
power supply: 5V
current: 100mA
R/O
RFID reader
ZT-SMT-R21C
IC card reader
interface: RS-232
protocol: ISO14443A
frequency: 13.56MHz
support chip:
S50/S70/FM11RF08/Ntag213/Ultralight
R/O
ZT-SMT-R2093
IC card reader
interface: USB
protocol: ISO15693
frequency: 13.56MHz
support chip:
ICODE SLI/ICODE SLIX/ICODE SLI-S
R/O
ZT-SMT-R2193
IC card reader
interface: RS-232
protocol: ISO15693
frequency: 13.56MHz
support chip:
ICODE SLI/ICODE SLIX/ICODE SLI-S
R/O
ZT-SMT-W20A
IC card
reader & writer
interface: USB
protocol: ISO14443A
frequency: 13.56MHz
support chip: S50/S70/FM11RF08
R/W
ZT-SMT-W2093
IC card
reader & writer
interface: USB
protocol: ISO15693
frequency: 13.56MHz
support chip:
ICODE SLI/ICODE SLIX/ICODE SLI-S
R/W
ZT-SMT-W20Q
IC card
reader & writer
interface: USB
protocol: ISO14443A+ISO15693
frequency: 13.56MHz
support chip:
S50/S70/FM11RF08/Ultralight
/ICODE SLI/ICODE SLIX/ICODE SLI-S
R/W
ZT-SMT-W21A
IC card
reader & writer
interface: RS-232
protocol: ISO14443A
frequency: 13.56MHz
support chip: S50/S70/FM11RF08
R/W
ZT-SMT-W2193
IC card
reader & writer
interface: RS-232
protocol: ISO15693
frequency: 13.56MHz
support chip:
ICODE SLI/ICODE SLIX/ICODE SLI-S
R/W
ZT-SMT-W21Q
IC card
reader & writer
interface: RS-232
protocol: ISO14443A+ISO15693
frequency: 13.56MHz
support chip:
S50/S70/FM11RF08/Ultralight
/ICODE SLI/ICODE SLIX/ICODE SLI-S
R/W
ZT-SMT-W20S
IC card sector
reader & writer
interface: USB
protocol: ISO14443A
frequency: 13.56MHz
support chip: S50/S70/FM11RF08
IC sector reader & writer
R/W
ZT-SMT-R30C
IC card reader
interface: USB
protocol: ISO14443A
frequency: 13.56MHz
support chip:
S50/S70/FM11RF08/Ntag213/Ultralight
operating system:
Windows98/XP32/XP64/2000/CE/7/ME
/NT/LIUNX/Vista32/Vista64/Android
reading distance: 0~80mm
response time: <100ms
response speed: 0.2S
response distance:0.5S
product size: 104*68*10mm
power fetching mode: USB ports
weight: 140G
environment:
operating temperature: -20℃-70℃
operating humidity: 5%-95%
power supply: 5V
current: 100mA
display: two LED indicators
(red for mains, green for status)
Built in controllable LED and buzzer
R/O
RFID reader
ZT-SMT-R31C
IC card reader
interface: RS-232
protocol: ISO14443A
frequency: 13.56MHz
support chip:
S50/S70/FM11RF08/Ntag213/Ultralight
R/O
ZT-SMT-R3093
IC card reader
interface: USB
protocol: ISO15693
frequency: 13.56MHz
support chip:
ICODE SLI/ICODE SLIX/ICODE SLI-S
R/O
ZT-SMT-R3193
IC card reader
interface: RS-232
protocol: ISO15693
frequency: 13.56MHz
support chip:
ICODE SLI/ICODE SLIX/ICODE SLI-S
R/O
ZT-SMT-W30A
IC card
reader & writer
interface: USB
protocol: ISO14443A
frequency: 13.56MHz
support chip: S50/S70/FM11RF08
R/W
ZT-SMT-W3093
IC card
reader & writer
interface: USB
protocol: ISO15693
frequency: 13.56MHz
support chip:
ICODE SLI/ICODE SLIX/ICODE SLI-S
R/W
ZT-SMT-W30Q
IC card
reader & writer
interface: USB
protocol: ISO14443A+ISO15693
frequency: 13.56MHz
support chip:
S50/S70/FM11RF08/Ultralight
/ICODE SLI/ICODE SLIX/ICODE SLI-S
R/W
ZT-SMT-W31A
IC card
reader & writer
interface: RS-232
protocol: ISO14443A
frequency: 13.56MHz
support chip: S50/S70/FM11RF08
R/W
ZT-SMT-W3193
IC card
reader & writer
interface: RS-232
protocol: ISO15693
frequency: 13.56MHz
support chip:
ICODE SLI/ICODE SLIX/ICODE SLI-S
R/W
ZT-SMT-W31Q
IC card
reader & writer
interface: RS-232
protocol: ISO14443A+ISO15693
frequency: 13.56MHz
support chip:
S50/S70/FM11RF08/Ultralight
/ICODE SLI/ICODE SLIX/ICODE SLI-S
R/W
ZT-SMT-W30S
IC card  sector
reader & writer
interface: USB
protocol: ISO14443A
frequency: 13.56MHz
support chip: S50/S70/+
IC sector reader & writer
R/W
ZT-SMT-R40CB
IC card reader
interface: USB
frequency: 13.56MHz
support chip:
S50/S70/FM11RF08/Ntag213/Ultralight
with dial switch
operating system:
windows 98/XP/2000/CE/7
/NT/LIUNX/Android
reading distance: 0~80mm
response time: <100ms
weight: 110G
product size: 105*65*15mm
Built in controllable LED and buzzer
optional: dial switch
R/O
RFID reader
ZT-SMT-R60C
IC card reader
interface: USB
protocol: ISO14443A
frequency: 13.56MHz
support chip:
S50/S70/FM11RF08/Ntag213/Ultralight
operating system:
windows 98/XP/2000/CE/7
/NT/LIUNX/Android
reading distance: 0~80mm
response time: <100ms
response speed: 0.2S
response distance:0.5S
weight: 100G
product size: 75*21*7mm
power fetching mode: USB ports
environment:
operating temperature: -20℃-70℃
operating humidity: 5%-95%
display: two LED indicators
(red for mains, green for status)
R/O
RFID reader
ZT-SMT-R6093
IC card reader
interface: USB
protocol: ISO15693
frequency: 13.56MHz
support chip:
ICODE SLI/ICODE SLIX/ICODE SLI-S
R/O
ZT-SMT-W60A
IC card
reader & writer
interface: USB
protocol: ISO14443A
frequency: 13.56MHz
support chip: S50/S70/FM11RF08
R/W
ZT-SMT-R80C
IC card reader
interface: USB
protocol: ISO14443A
frequency: 13.56MHz
support chip:
S50/S70/FM11RF08/Ntag213/Ultralight
reading distance: 20~150mm
two color indication: red and green
response distance:0.5S
power supply: 5V
current: 30-80ma
environment:
operating temperature: -40℃-150℃
operating humidity: 5%-95%
Antistatic interference: ±2.5KV
product size: 105*65*15mm
R/O
RFID reader
ZT-SMT-W80A
IC card
reader & writer
interface: USB
protocol: ISO14443A
frequency: 13.56MHz
support chip: S50/S70/FM11RF08
R/W
ZT-SMT-W8093
IC card
reader & writer
interface: USB
protocol: ISO15693
frequency: 13.56MHz
support chip:
ICODE SLI/ICODE SLIX/ICODE SLI-S
R/W
ZT-SMT-R90C
IC card reader
interface: USB
protocol: ISO14443A
frequency: 13.56MHz
support chip:
S50/S70/FM11RF08/Ntag213/Ultralight
operating system:
windows98/XP32/XP64/2000/CE/7/ME
/NT/LIUNX/Vista32/Vista64/Android
reading distance: 0~70mm
response time: <100ms
communication line length: 1.5m
color: silver
weight: 120G
product size: 133*80*16mm
display: two LED indicators
(red for mains, green for status)
Built in controllable LED and buzzer
R/O
RFID reader
ZT-SMT-R95C
IC card reader
interface: USB
protocol: ISO14443A
frequency: 13.56MHz
support chip:
S50/S70/FM11RF08/Ntag213/Ultralight
with keyboard
operating system:
windows 98/XP/2000/CE/7
/ME/NT/LIUNX/Android
reading distance: 0~80MM
communication line length: 1.5m
Color: black or white
weight: 220G
product size: 133*80*16mm
optional:
dial switch/protective cover
R/O
RFID reader


plastic card printing    |    plastic card company    |    plastic card factory    |    FAQs    |    privacy policy    |    terms and conditions

ZOTEI GROUP LIMITED SCIVAS LIMITED
ZOTEI GROUP LIMITED
MINGJIA SMART CARD CO.,LTD
Copyright © 2008-2020 SCIVAS All Rights Reserved
TEL : 0086-20-87248506
