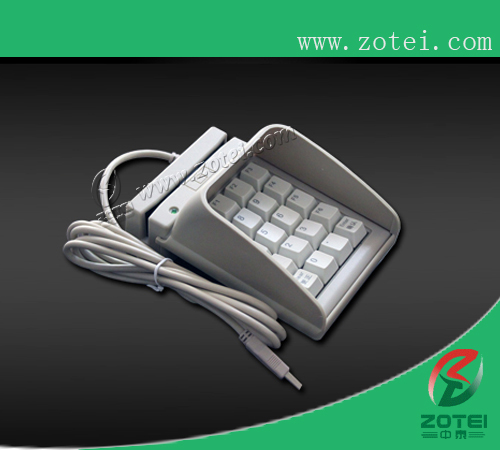

Encryption keyboard with magnetic card reader: YD-736S |
| |
|
| |
|
| |
|
| |
 |
| |
|
| |
|
| |
|
| |
|
| |
Product features and parameters: |
| |
> Set of magnetic card reader and PIN pad in one |
| |
> Used in reading and transmitting information to the computer or terminal device |
| |
> Support bi-directional swiping card |
| |
> Fully compliant with ANSI / ISO technical standards |
| |
> Automatic identification ISO, IBM standard data |
| |
> Sound and light double hint |
| |
> Interface: USB, RS-232, PS/2 |
| |
> Read track: track1, track2, track3 |
| |
> Working Voltage: +5V |
| |
> The operating temperature and humidity: 0 ℃ ~ +50 ℃, 20 ~ 90%RH |
| |
> Magnetic head life: > 300,000 passes |
| |
> Card feeding speed: 10 ~ 100cm/s |
| |
> Antistatic Ability: 15000V |
| |
> Encryption description: |
| |
> Built-in standard DES algorithm, but also follow the ANSI 9.8 PINBLOCK GB card standard |
| |
> Can save the key offline |
| |
> There are a wealth of operational command, including keyboard input, keyboard management, |
| |
key management, and so on. |
| |
> Key is divided into two keys, one for the management of keys, called the master key, |
| |
the second for the work key. |
| |
> There are 16 master key, representing the different settlement center |
| |
> There are 16 work key, respectively belong to a different master key |
| |
|
