pin pad (password keyboard) |
| |
|
| |
|
| |
|
| |
 |
Product Model |
Interface And Function |

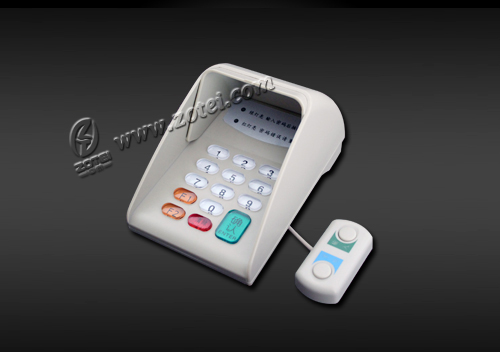

Picture |
|
PS/2 |
|
|
PS/2, Voice |
|
PS/2, Voice, LED |
|
USB |
|
|
USB, Voice |
|
USB, Voice, LED |
|
RS232 |
|
|
RS232, Voice |
|
RS232, Voice, LED |
|
Keyboard encryption |
|
|
Keyboard encryption, Voice |
|
Keyboard encryption, Voice, LCD |
|
YD-800 series
(Multi-specific keyboard,E-POS pin pad) |
YD800 series of electronic payment terminals are designed for high-tech products used by financial counters, set of magnetic card, IC card, SAM card, LED display and pin pad in one. On the one hand it has magnetic card function, can read ISO standard of 2, 3 magnetic card, on the other hand with the keyboard function, and the Keyboard containing standard 8-bit DES. |
YD-800 has a built-in SAMRT Card slot , support accord with ISO7816 agreement T = 0 and T = 1 CPU card, support simes4432/ 4442, simes4418/ 4428,1604/1604B and 1608 card |
| Click here for details of YD-800 |
|
|
 |
|
| |
|
| |
Detailed Product Description |
| |
Basic characteristics |
| |
> Appearance Description: a professional with high security perimeter block |
| |
> Key material: high quality engineering rubber |
| |
> Key Surface: Crystal Button |
| |
> Case Material: high quality engineering plastics |
| |
> Input Keyboard: 10 numeric keys, 4 function keys |
| |
> Communication Interface: Standard RS-232 8 data bits, 1 stop bit, no parity |
| |
> Hint Message: LCD, LED, voice, controller |
| |
> Working power consumption: <1W, DC +5 V Weight: 520g |
| |
> Dimensions: W105 × L150mm × H85mm |
| |
|
| |
Electrical Performance |
| |
> Security: the key will be automatically destroyed When open the pin pad |
| |
> Cryptographic algorithms: DES and Triple DES |
| |
> Capacity: PIN encryption, MAC computation, data encryption / decryption |
| |
> Standard: ISO9564, IBM3624, ANSI X9.8, ANSI X9.9, ANSI X9.19 |
| |
> Protection: sensitive data will be store more than 5 years when power off |
| |
|
| |
Mechanical properties |
| |
> Mechanical properties |
| |
> Mechanical life: over 2,000,000 times |
| |
> Key pressure: 2 ~ 5N (cattle) |
| |
> Key travel: not less than 1.2mm |
| |
|
| |
Adaptability to environment |
| |
> Operating temperature: 0℃ ~ +40℃ |
| |
> Relative Humidity: 30% ~ 90% RH |
| |
> Storage temperature: -25℃ ~ +55℃ |
| |
> Relative Humidity: 20% ~ 95% RH (no condensation) |
| |
> Atmospheric pressure: 60 ~ 101Kpa |
| |
|
